120W AC Motor 90mm motor without gear head 1500rpm Optical axis motorSpecificationMode5IKJ120(Oil bearing for applications in light loading)VoltageAC220V, SINGLE PHASE(if need 110v, contact us)Power12
Mode | 5IKJ120(Oil bearing for applications in light loading) |
Voltage | AC220V, SINGLE PHASE(if need 110v, contact us) |
Power | 120W |
Frequency | 50/60Hz |
Current | 0.25/0.13A |
Torque | 9.8 kg.cm |
Insulation class | B class(130 degree) |
Working duty | Continuous running(S1 working duty) |
Motor housing diameter | 90*90mm |
Accessory | installing screws |
Available accessory | speed controller, Electromagnetic brake |
Using Temperature/humidity | -10°C ~ 40°C (no freeze) / ≤85% |
Warranty | One Year |
Net Weight: 3.4 Kg/ Pc
It’s supported to Start Order even in small quantity.
Delivery by express service.

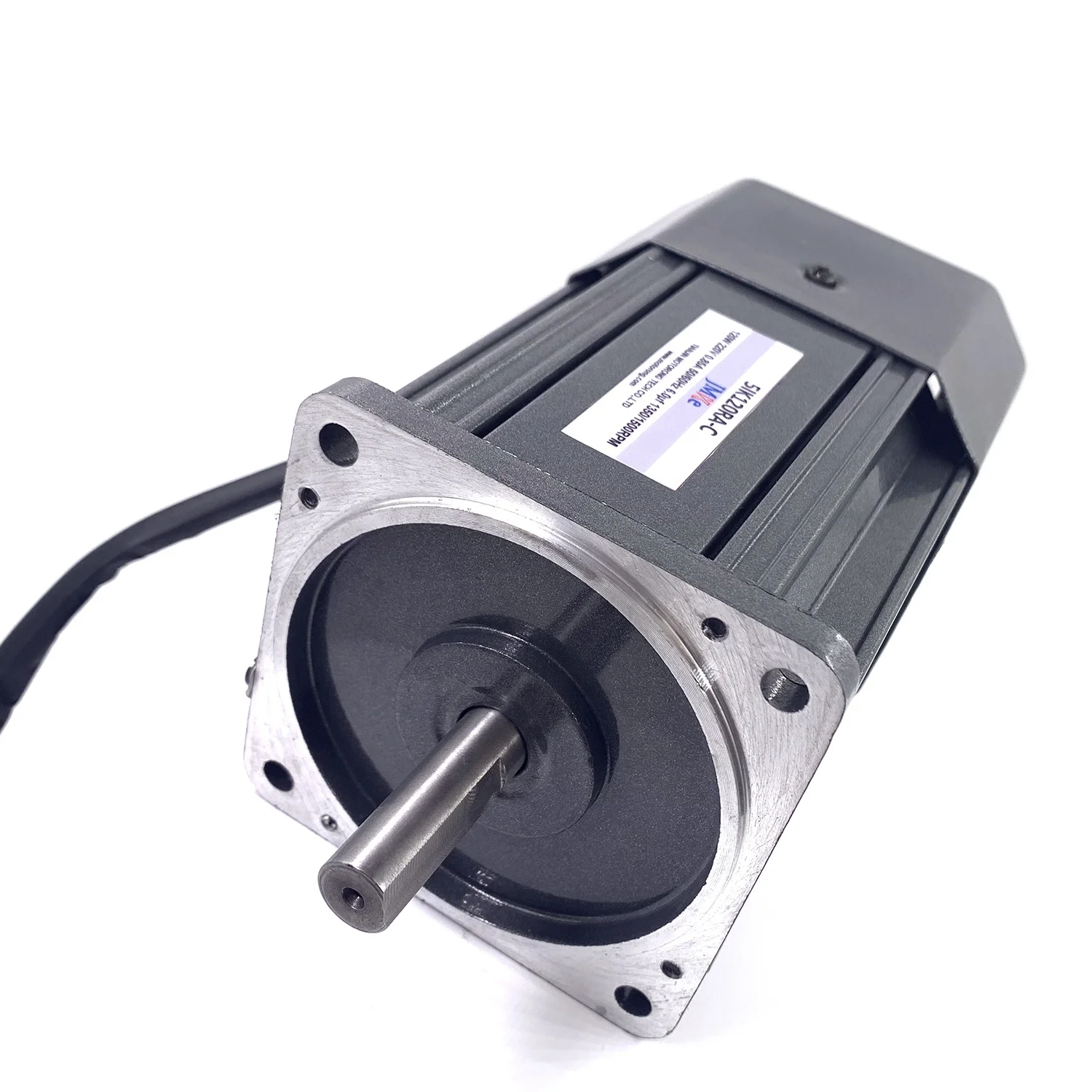

Noted: Optical Axis Shaft without Gear Box

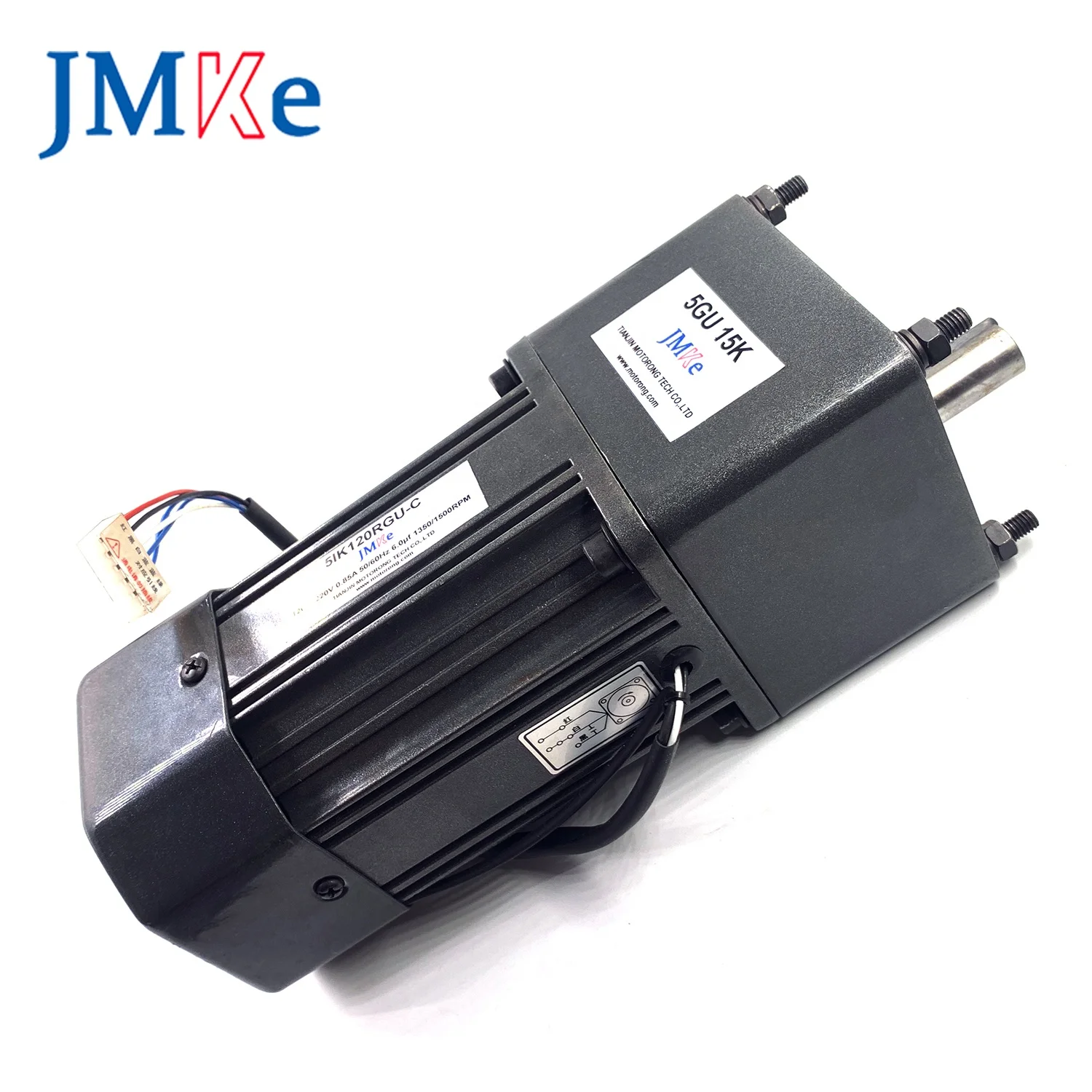

Alao we supply 120W AC Induction Motor with Gear Box
if need extra accessory, contact us
NOTE
1. Connect wire in right way
2. Don't run on-load for too long time, or run over load in low speed in case of excess temperature
3. Don't drag the expansion line
4. Don't disassemble randomly the assembled gear head in case of noise by drop dusty
5. Don't beat or squeeze it when connecting the output shaft of gear motor and loading subject. Otherwise, inside deformation might cause noise or locked phenomena

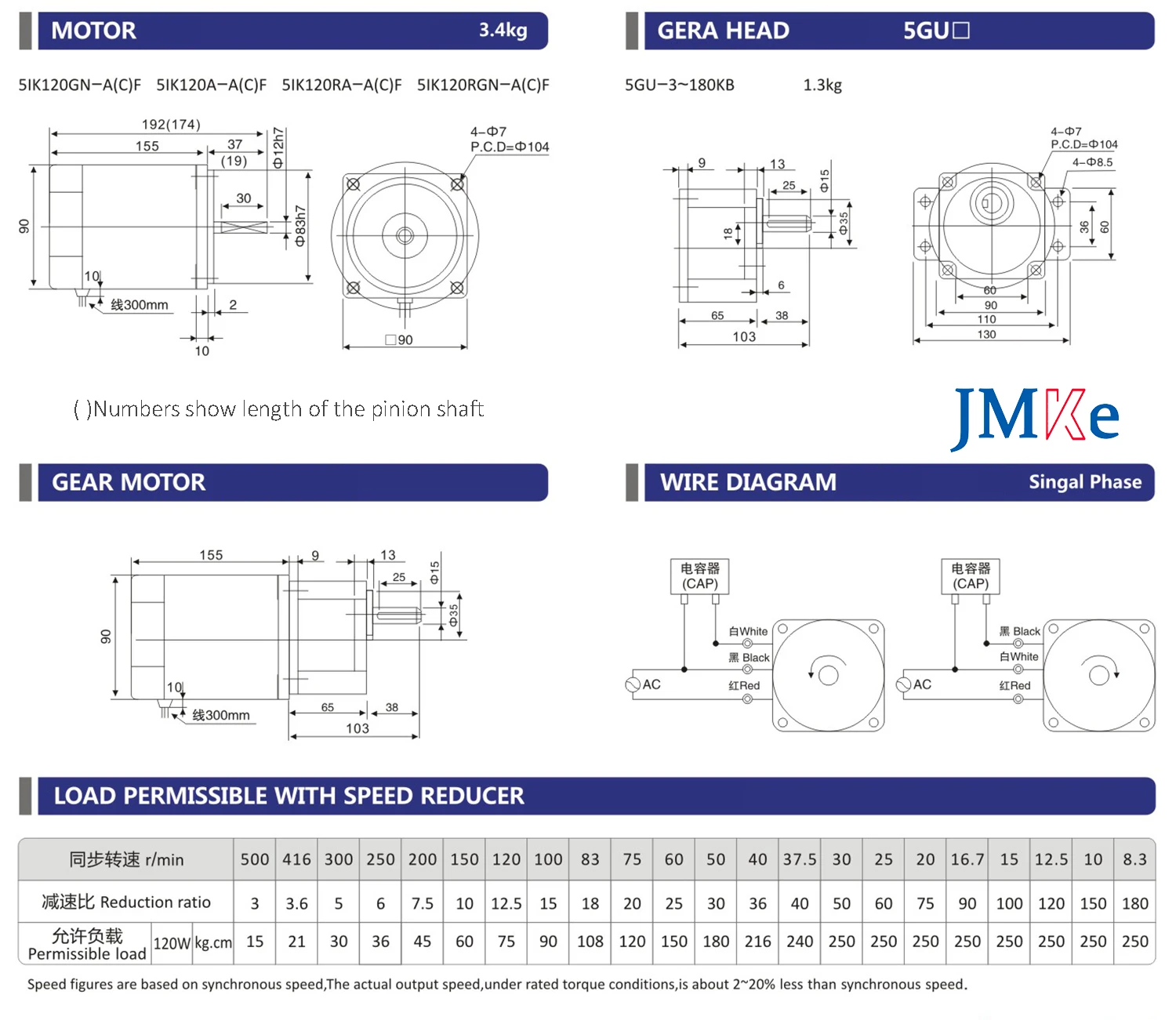

Wiring Diagram on body
Tips for guaranting 12months
