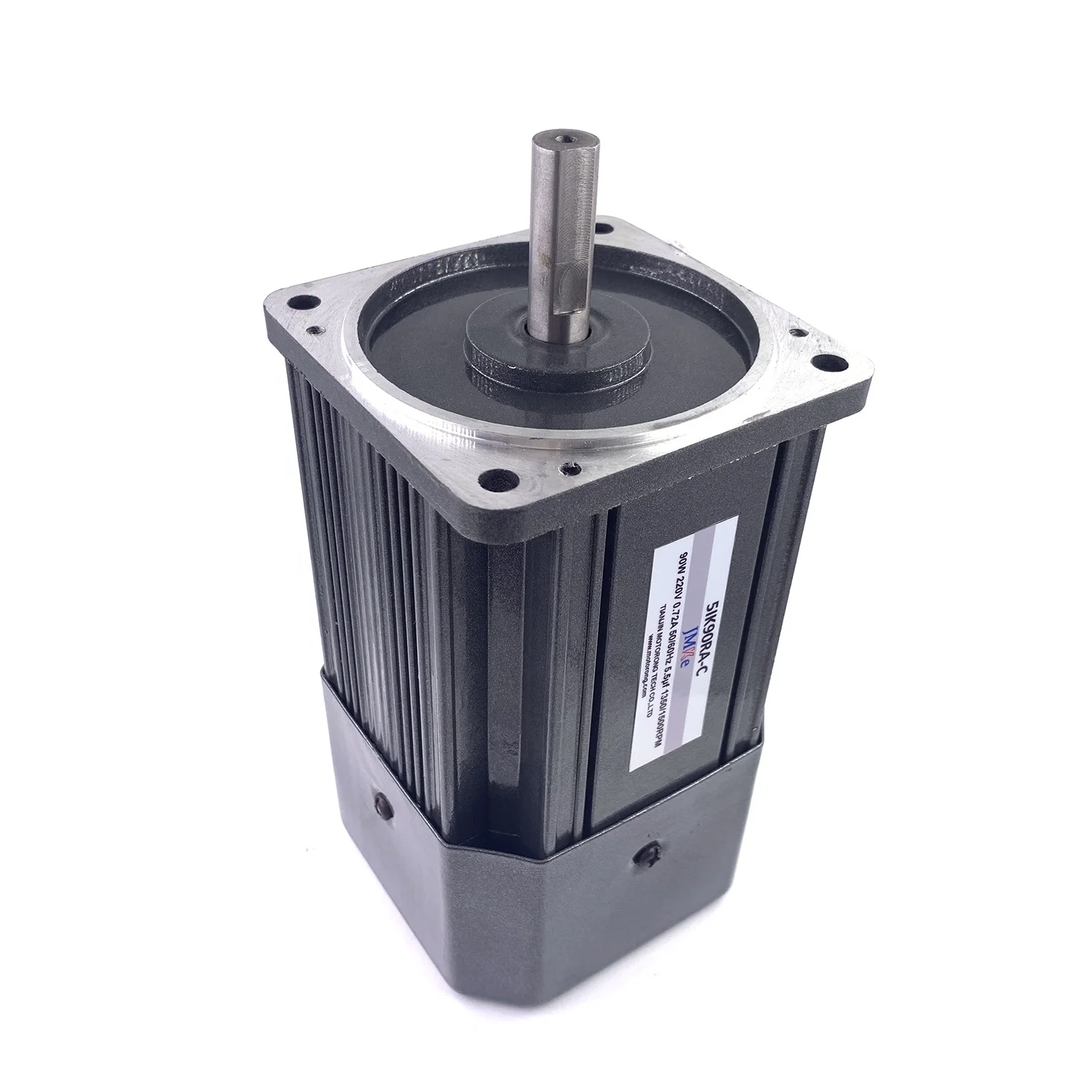

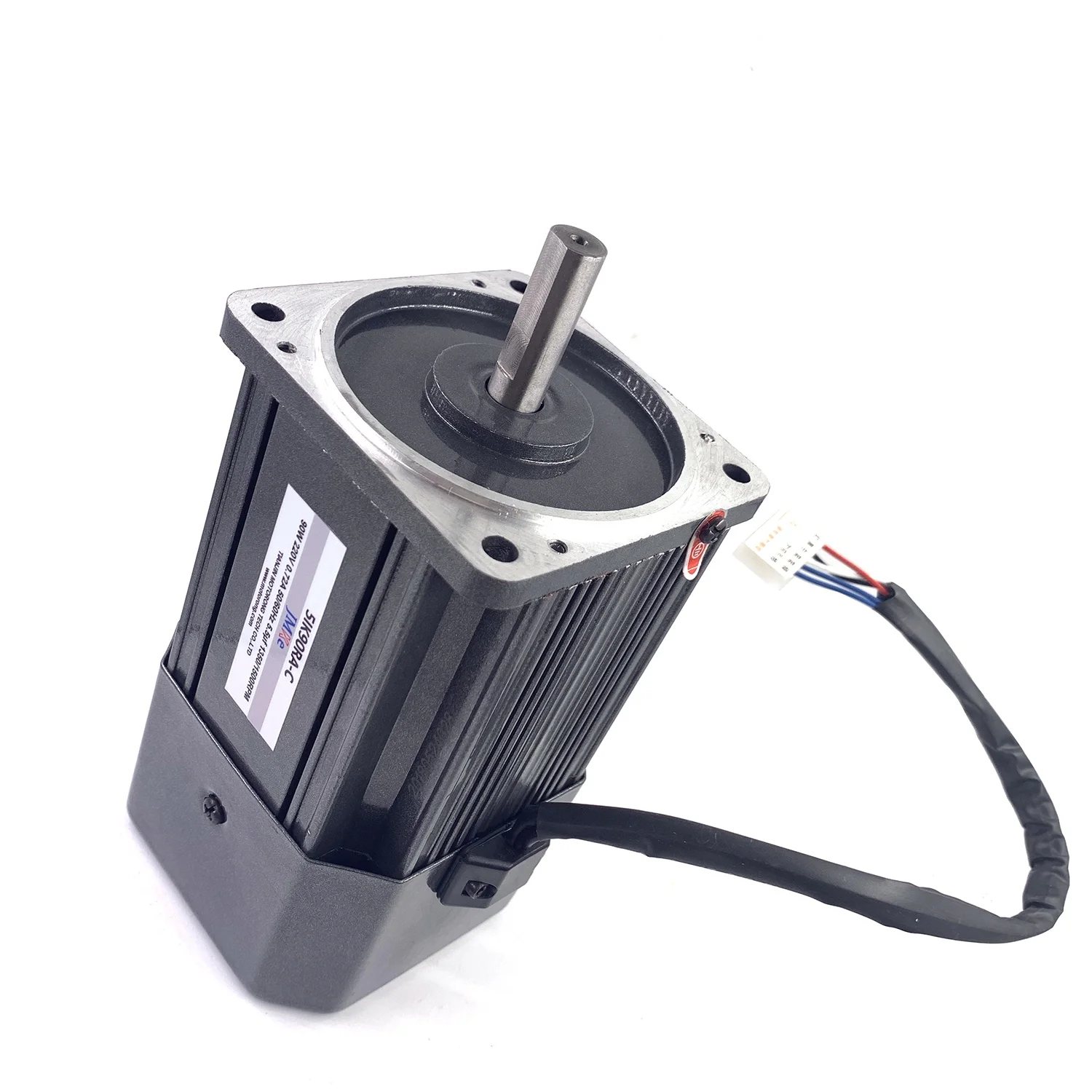

90W 5IK90RA Speed Control Optical axis motor AC Induction MotorSpecificationMode5IKJ090(Oil bearing for applications in light loading)VoltageAC220V, SINGLE PHASE(if need 110v, contact us)Power90W Freq
Mode | 5IKJ090(Oil bearing for applications in light loading) |
Voltage | AC220V, SINGLE PHASE(if need 110v, contact us) |
Power | 90W |
Frequency | 50/60Hz |
Current | 0.25/0.13A |
Torque | 6.7 kg.cm |
Insulation class | B class(130 degree) |
Working duty | Continuous running(S1 working duty) |
Motor housing diameter | 90*90mm |
Accessory | installing screws |
Available accessory | speed controller, Electromagnetic brake, mounting braket |
Using Temperature/humidity | -10°C ~ 40°C (no freeze) / ≤85% |
Warranty | One Year |
Net Weight:4.7 Kg/ Pc
It’s supported to Start Order even in small quantity.
Delivery by express service.
Optical axis
without gear head
NOTE
1. Connect wire in right way
2. Don't run on-load for too long time, or run over load in low speed in case of excess temperature
3. Don't drag the expansion line
4. Don't disassemble randomly the assembled gear head in case of noise by drop dusty
5. Don't beat or squeeze it when connecting the output shaft of gear motor and loading subject. Otherwise, inside deformation might cause noise or locked phenomena
