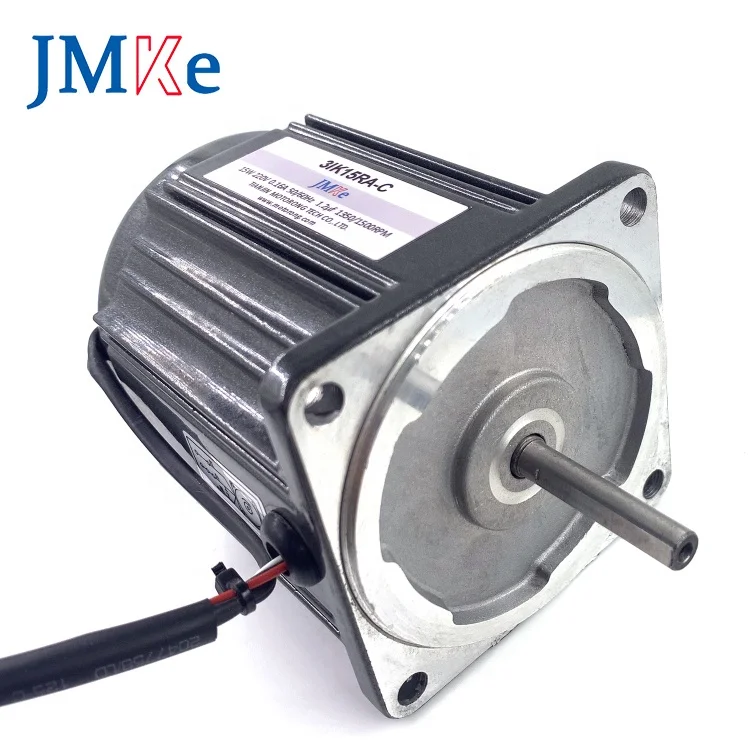

JMKE small power 220v high performance 15w 70*70mm ac motor 1350rpmSpecification JMKE small power 220v high performance 15w 70*70mm size ac motor 1350rpmMode3IKJ015 (Oil bearing for applications in li
JMKE small power 220v high performance 15w 70*70mm size ac motor 1350rpm
Mode | 3IKJ015 (Oil bearing for applications in light loading) |
Voltage | AC220V, SINGLE PHASE(if need 110v, contact us) |
Power | 15W |
Frequency | 50/60Hz |
Current | 0.25/0.13A |
Torque | 1kg.cm |
Rated Speed | 1350rpm/1550rpm |
Insulation class | B class(130 degree) |
Working duty | Continuous running(S1 working duty) |
Motor housing diameter | 70*70mm |
Accessory | installing screws |
Available accessory | speed controller, Electromagnetic brake |
Using Temperature/humidity | -10°C ~ 40°C (no freeze) / ≤85% |
Warranty | One Year |
It’s supported to Start Order even in small quantity.
Delivery by express service.
Accessory:
Speed controller (selected)
Electromagnetic brake (selected)
if need extra accessory, contact us
NOTE
1. Connect wire in right way
2. Don't run on-load for too long time, or run over load in low speed in case of excess temperature
3. Don't drag the expansion line
4. Don't disassemble randomly the assembled gear head in case of noise by drop dusty
5. Don't beat or squeeze it when connecting the output shaft of gear motor and loading subject. Otherwise, inside deformation might cause noise or locked phenomena
Wire Connecting on boday
It's supported to delivery by express service.
leave message about voltage/ power/ speed and other request
Q:What kind of motors you can provide?
A: We currently produce AC Induction motor, speed controller and other accessory etc. Let me know Voltage, Power, Speed, dimension limited, whether need speed control etc,. I will recommend you suitable type
Q:Can you send me a price list?
A: Price also varies according to annual quantity. If you send detailed requirements and annual quantity, you can get quick quotation.
Q:What's the lead period for regular order?
A: About 3 days if in available stock.
Q:Is it possible to have customized service if we pay sample cost.
A: Yes. According to your request for the voltage, speed, torque and shaft size/shape, we quote you. It’s better to share the detailed like annual quantity, target price etc.
Q: What's the MOQ? Can I just order few quantities?
A:Welcome to order for personal use or replacement. It’s no problem to send by international express delivery if regular mode has available stock.If MOQ, price and other terms are acceptable, we'd love to provide customized samples for your testing before official order.
Q: What's your payment term?
A:100% payment if quantity under 100pcs. Above 100pcs, 40% as deposit and 60% paid before shipment.
Q: How can I trust you to make sure my money is safe?
A: Order in trade assurance of Alibaba would be a good chose for you.
