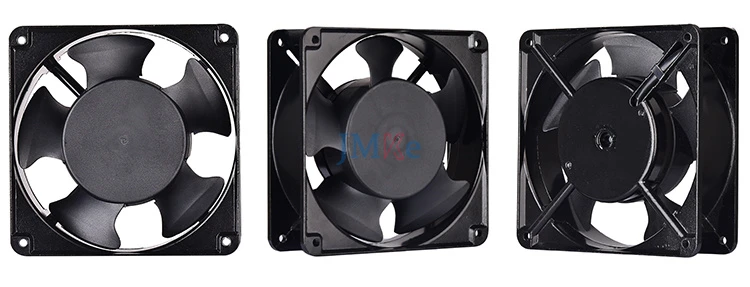

JMKE 120x120x38 mm Plastic Impeller Ball Bearing AC axial flow fanProduct Description 1. Bearing System: Ball Bearing & Sleeve Bearing2. Impeller: PBT With Fiber Class Filed Ul-94v03. Housing: Die
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Cast Aluminum
4. Connection: Wire & Terminal
5. Protection: Polar & Locked
6. IP Class: Max IP68
7. Insulation Class: B
8. Compressive Strength: 500v
9. Storage Temperature: -20°--- 70°
10. Working Temperature: -10°--- 60°
Specification
MODEL NO. | VOLTAGE | FREUENCY (HZ) | CURRENT | POWER | SPEED | MAX AIR FLOW (CFM) | MAX Sq. | NOISE |
JM-12038L22 | 220/240 | 50/60 | 0.11/0.09 | 11/10 | 2200/2500 | 71/79 | 4.82/5.33 | 37/39 |
JM-12038L11 | 110/120 | 50/60 | 0.13/0.12 | 11/10 | 2200/2500 | 71/79 | 4.82/5.33 | 37/39 |
JM-12038M22 | 220/240 | 50/60 | 0.13/0.11 | 18/17 | 2700/3000 | 82/105 | 5.84/7.11 | 42/47 |
JM-12038M11 | 110//120 | 50/60 | 0.24/0.18 | 18/17 | 2700/3000 | 82/105 | 5.84/7.11 | 42/47 |
JM-12038H22 | 220/110 | 50/60 | 0.14/0.12 | 18/19 | 2700/3000 | 112/120 | 6.85/7.62 | 40/45 |
JM-12038H11 | 110/120 | 50/60 | 0.14/0.12 | 18/19 | 2700/3000 | 112/120 | 6.85/7.62 | 40/45 |
We currently produce AC/DC Axial Fan, Centrigual Fan, High Pressure Fan, Low Pressure Fan etc, including baldes, fan guard, part. Check above specifications or email us to recommend motors based on your specification.
Q:What kind of FANS you can provide?
A: We currently produce AC/DC Axial Fan, Centrigual Fan, High Pressure Fan, Low Pressure Fan etc. Check above specifications or email us to recommend motors based on your specification.
Q:Can you send me a price list?
A: Price varies according to annual quantity. If you send detailed requirements and annual quantity, you can get quick quotation.
Q:What's the lead period for regular order?
A: About 20 days if no stock. Period can be shorter or longer based on different model and quantity. Regular modes normally have stock.
Q: What's the MOQ? Can I just order few quantities?
A:Welcome to order for personal use or replacement. It’s no problem to send by international express delivery if regular mode has available stock.If MOQ, price and other terms are acceptable, we'd love to provide customized samples for your testing before official order.
Q: What's your payment term?
A:100% payment if quantity under 100pcs. Above 100pcs, 40% as deposit and 60% paid before shipment.
Q: How can I trust you to make sure my money is safe?
A: Order in trade assurance of Alibaba would be a good chose for you.
